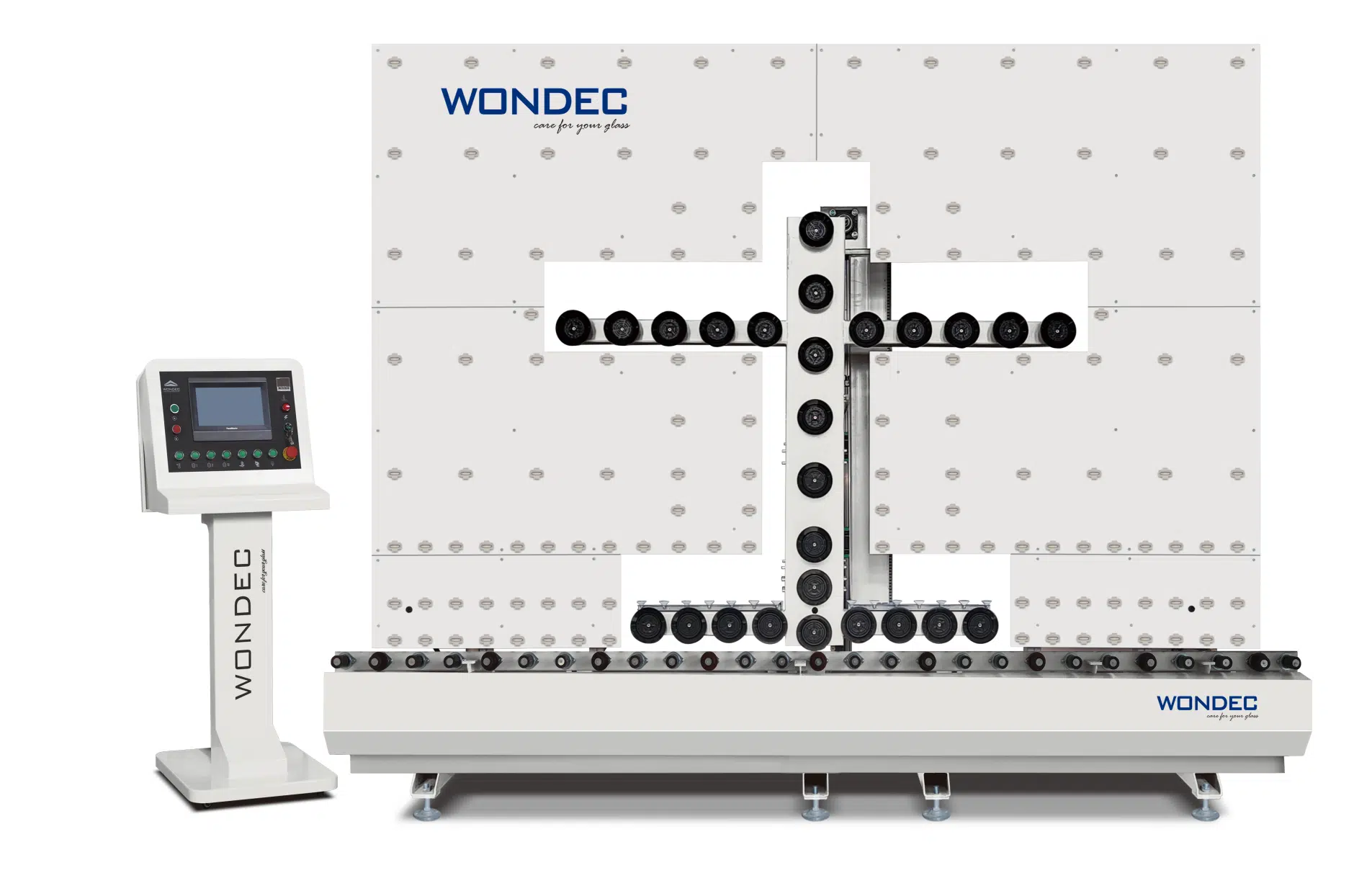

WONDEC WAL Series Automatic Glass Loading Machine
Product View
Overview
Key Features:
Intelligent Operation: Managed via a touch screen interface, ensuring the operation is intuitive and easy to master.
Precision Servo Drive: Servo motor control guarantees smooth movement and accurate positioning with high safety and reliability.
Powerful Vacuum Adsorption: Equipped with high-quality vacuum suckers and high negative pressure to ensure glass is firmly held and does not fall off.
Comprehensive Safety Protection: Includes automatic alarms for material shortage, under-voltage waiting for suckers, and power failure protection to ensure operational safety.
Flexible Processing: Features a unique lifting program to prevent glass damage; it can reach a loading depth of up to 850 mm directly from the glass frame.
Key Features
Servo-Controlled Loading
Touch Screen Operation
Vacuum Suction Safety
Applications
Application Scenarios
Recommended For
Technical Parameters
| WAL2540 | WAL3060 | |
|---|---|---|
| Power supply | AC220V 50HZ | AC220V 50HZ |
| Total power | 5.5kW | 11kW |
| Air pressure | 0.6~0.8MPa | 0.6~0.8MPa |
| Thickness of single glass | 3~12mm | 3~12mm |
| Max. grab glass size | 2500×4000mm | 3000×6000mm |
| Min. grab glass size | 300×500mm | 300×500mm |
| Transfer speed | 2-48 m/min | 2-48 m/min |
| Overall dimensions | 4000×2800×3050mm | 6200×2800×3550mm |
