Automatic butyl extruder with 200 kg butyl loading capacity

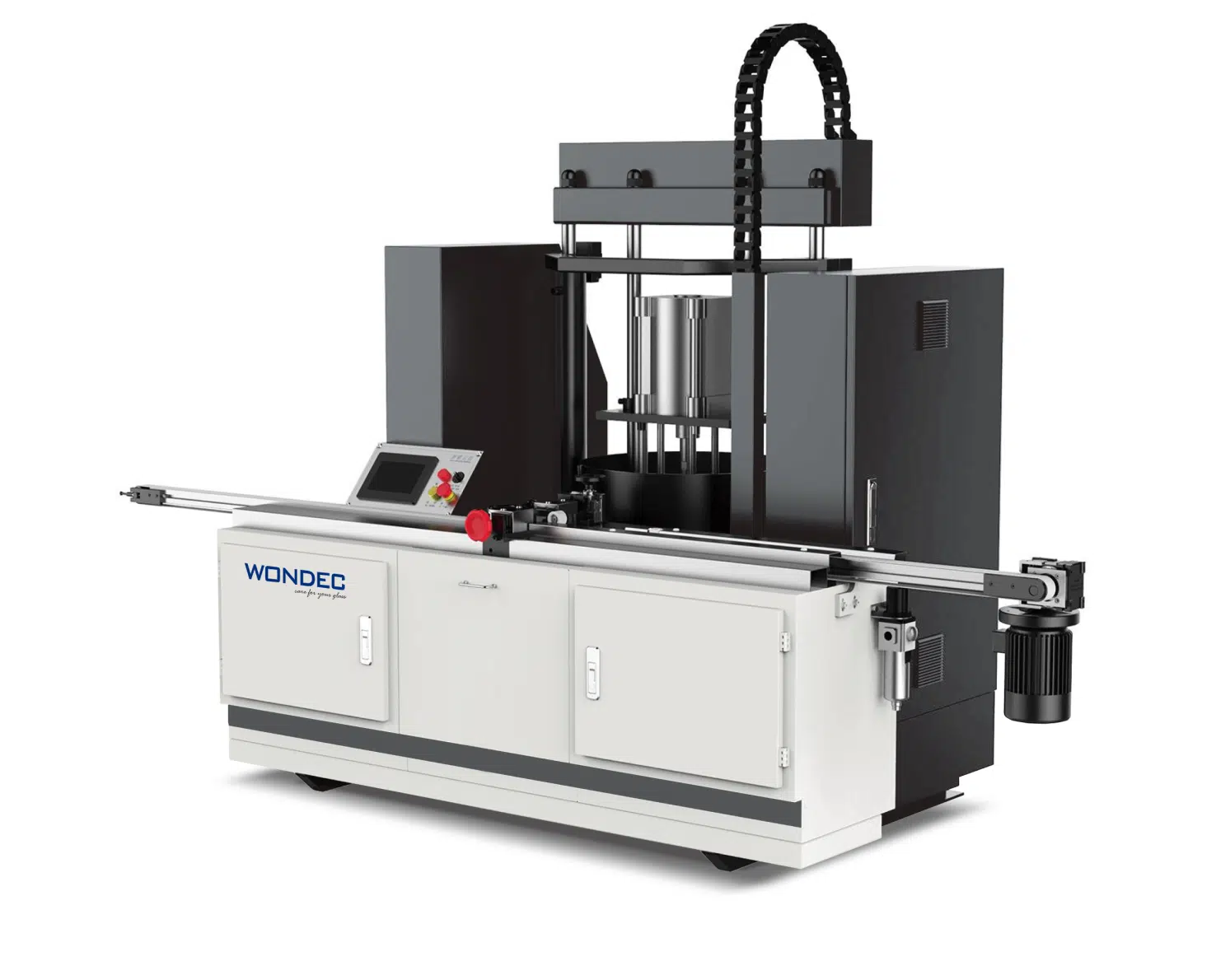

WONDEC BEM05 Automatic Butyl Extruder
Model:
BEM05
Butyl Extruder, 200kg Loading, Automatic Nozzle, PLC Control, Spacer Sealing
BEM05 is an automatic butyl extruder with 200 kg butyl loading capacity, automatic nozzle adjustment and precise hydraulic and temperature control for efficient spacer sealing.
Product View
Overview
Key Features:
- 200 kg Butyl Loading: Supports continuous production with fewer material changes.
- Integrated Casting Body: Provides a stable machine structure.
- Hydraulic and Pump-Valve System: A new hydraulic system with an imported pump-valve group supports stable coating.
- PLC Control: PLC control manages the process from the platen to the nozzles.
- Automatic Nozzle Adjustment: Nozzle spacing adjusts automatically according to spacer width.
Key Features
200 kg Butyl Loading
Large butyl capacity reduces replacement frequency and material waste.
Automatic Nozzle Adjustment
Spray nozzle space adjusts automatically according to spacer width.
Precision Hydraulic Control
New hydraulic system and imported pump valve group improve coating stability.
Applications
Typical use cases and production scenarios.
Application Scenarios
For higher-capacity primary sealing of insulating glass spacer frames where fewer butyl replacements and stable coating are required.
Recommended For
IG factories with frequent butyl coating work and higher requirements for productivity, material saving and coating stability.
Technical Parameters
| BEM05 | |
|---|---|
| Power supply | 380V/50Hz |
| Total power | 5.0kW |
| Extruding speed | 0~40m/min |
| Extruding temperature | 120~140℃ |
| Air pressure | 0.6~0.8MPa |
| Extruding nozzle range | 0~40mm |
| Butyl loading | 200kg |
| Overall dimension | 2870×1150×1780mm |
