Vertical CNC drilling and milling center for precision glass processing

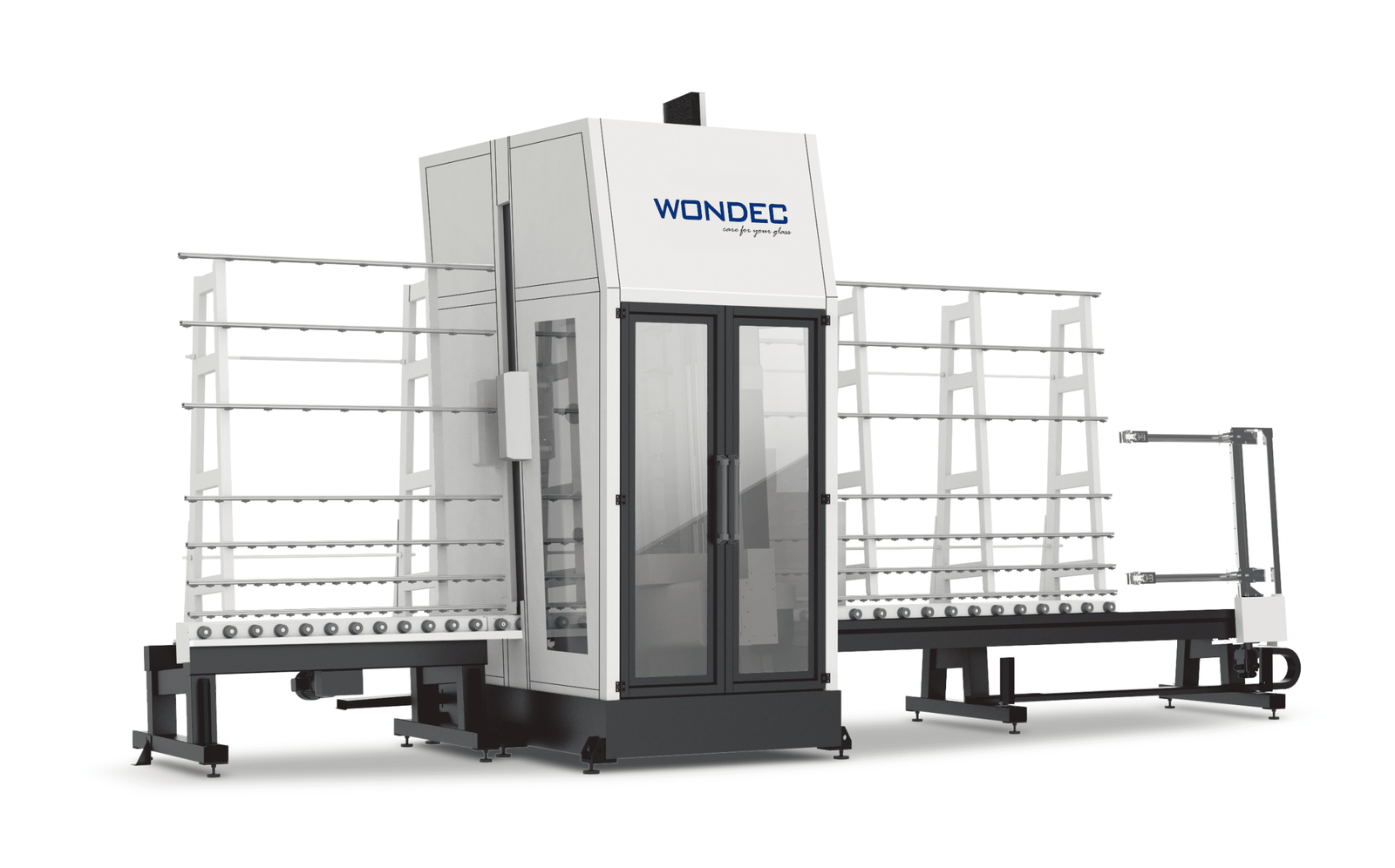

WONDEC SKY2542B Vertical Glass Drilling and Milling Machining Center
Model:
SKY2542B
CNC Glass Processing, Drilling, Milling, Grinding, Polishing
SKY2542B is a vertical glass drilling and milling machining center for drilling, milling, grinding, polishing and irregular glass processing with accurate positioning and dual spindle operation.
Product View
Overview
Key Features:
Versatile Integration: Drilling, milling, inner edge grinding, and polishing are completed in one cycle.
Opposite Dual Spindles: Optimizes tool change speed and maximizes processing efficiency.
High Precision: Features automatic edge detection for superior machining accuracy.
Key Features
Dual Spindle Processing
Front and rear spindles support drilling, milling and grinding for faster processing.
Optimized Tool Change
Fast Y/V axis movement and tool change improve processing efficiency.
Irregular Glass Capability
Processes stair glass, baluster shapes and special external edges with precise positioning.
Applications
Typical use cases and production scenarios.
Application Scenarios
For deep processing of shower door glass, curtain wall glass, balustrade glass and irregular architectural glass parts.
Recommended For
Glass processors needing CNC accuracy, multiple process integration and irregular glass processing capability.
Technical Parameters
| SKY2542B | |
|---|---|
| Max. glass size | 2500×4200mm |
| Min. glass size | 300×500mm |
| Electric spindle power | 7.5kW+7.5kW |
| Max. spindle speed | 12000rpm |
| Tool shank | BT30 |
| Tool magazine | YES |
| Machining accuracy | ±0.15mm |
| Tools center cooling | YES |
| Function parts total power | 10kW |
